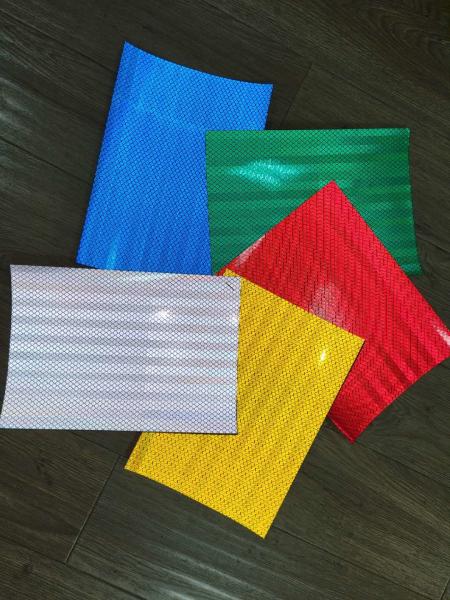

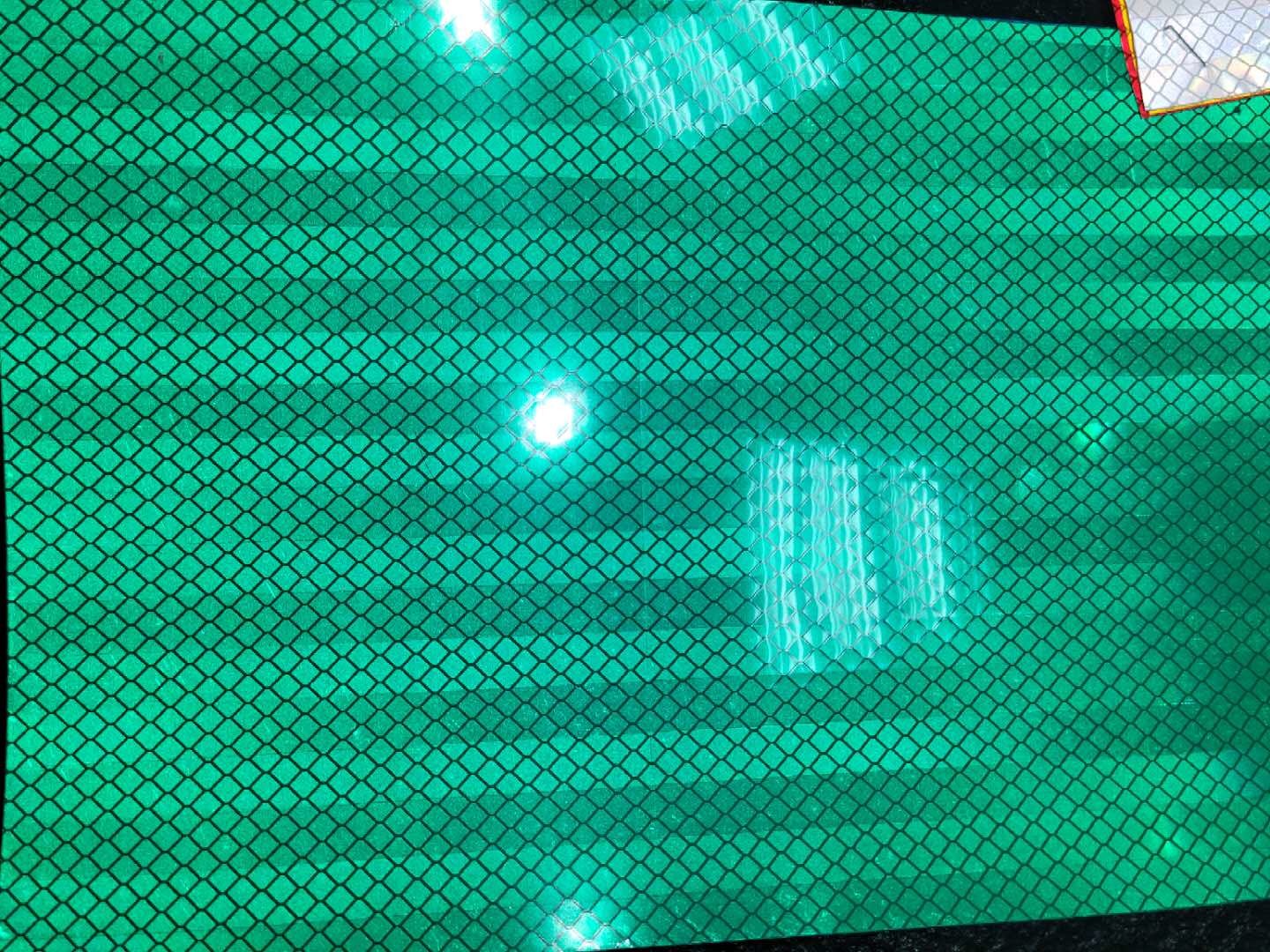

High Intensity Prismatic acrylic material Reflective Vinyl durability 7 years for traffic road sign
High intensity Grade Micro-Prismatic reflective sheeting is based on acrylic reflective film, good flexibility and excellent for computer cutting, very easy operated, the acrylic film is tearable. Very competitive prices for the area meanwhile have long time service life.
Product Description
| Product item | High intensity reflective sheeting (hard prismatic ) |
| Size | 1.22m*45.7m and customize |
| Net Weight | 34kgs/ctn(1roll in one carton/hard tube) |
| Gross Weight | 36kgs/ctn |
| surface film | Acrylic |
| Properties | Reflective Light |
| Adhesive | Permanent pressure sensitive adhesive |
| Color | White,Red,Blue,Green,Yellow,orange ,brown |
| Liner | 100mic PET filim |
| Feature | Prismatic |
| Durability | 7 years |
| Printing | Silk Screen,Letter Signs |
| Bulk lead time | 7-10 days more or less, based on your quantities |
| Delivery | FOB Shanghai, CNF, CIF, |
| Terms of payment | T/T |
| Product Type | Micro Prismatic |
| Working Temperature | 18-28ºC |
| Application | Traffic Signs, traffic warning sign, conspicuity tape |
Advantage
1.Affordable prism reflective film for all kinds of roads, excellent outdoor weather resistance
2.Fully meet the traffic safety needs of high grade roads
3.High-quality products that have been certified by the market for a long time, suitable for all kinds of logo processing technology
4.National standard GB18833 Class I membrane
5.Compared with glass bead reflective film, the VOC, energy consumption and waste generated during the manufacture of these products are greatly reduced
6.Micro-prism reflective film, high reflective brightness on the front and excellent retro-reflective performance, can improve the distinctiveness of traffic signs, allowing drivers to find signs earlier; can maintain reflective performance and durability for a long time.
Feature:
1.Superior brightness and angularity
2.High temperature resisitance
3.Tear Growth Resistance, Scratch resistance, water/oil Resistance
4.Weather resistance, keep good reflection in the bad weather, like the raining day, foggy or dark condition
5.Pressure sensitive adhesive, paste properties, fast strong bonding, easy to apply to any surface
6.Dustproof, moisture proof, easy to erase.
7.Can be silk screen printed, easy for computer cutting,Lettering,
Storage:
It should be stored in a cool and dry area, preferably at 18~28ºCand 30~50% relative humidity and should be applied within one year of purchas
. Coefficient of retro-reflection
| Observation angle | Entrance angle | coefficient of retro-reflection |
| White | Yellow | Red | Green | Blue | Orange | Brown |
| 0.2° | -4° | 636 | 437 | 105 | 85 | 56 | 261 | 77 |
| 30° | 259 | 206 | 43 | 33 | 21 | 112 | 30 |
| 0.5° | -4° | 460 | 367 | 91 | 71 | 37 | 203 | 57 |
| 30° | 85 | 72 | 16 | 13 | 6.3 | 38 | 9.9 |
Notes:
The reflective sheeting is better to keep and cut between the 18-28ºC; when working, the working area and tools should be clean. The unused after opening, should be rolled back tightly along the primary direction and fixed, the inner tube diameter should be more than 10cm
Packing:
1.Hard tube
2.As per customer requirement
3.Export packing-thick core and cartons, two sides with plug, put on pallets, wrap with shrink film
Application:
a). Highway and city road traffic signs,retro- reflective marking for cars,
trucks, ships and other vehides
b). Personal safety supplies: bicycles, motocyles, etc
c).Vehicle: safety signs and decals
d).Industry safety signs
e). Parking signs: all construction signs
f). Temporary signs and night of physical activity
g). Conspicuity tape
Delivery time:
8-10 days after receive the payment.
